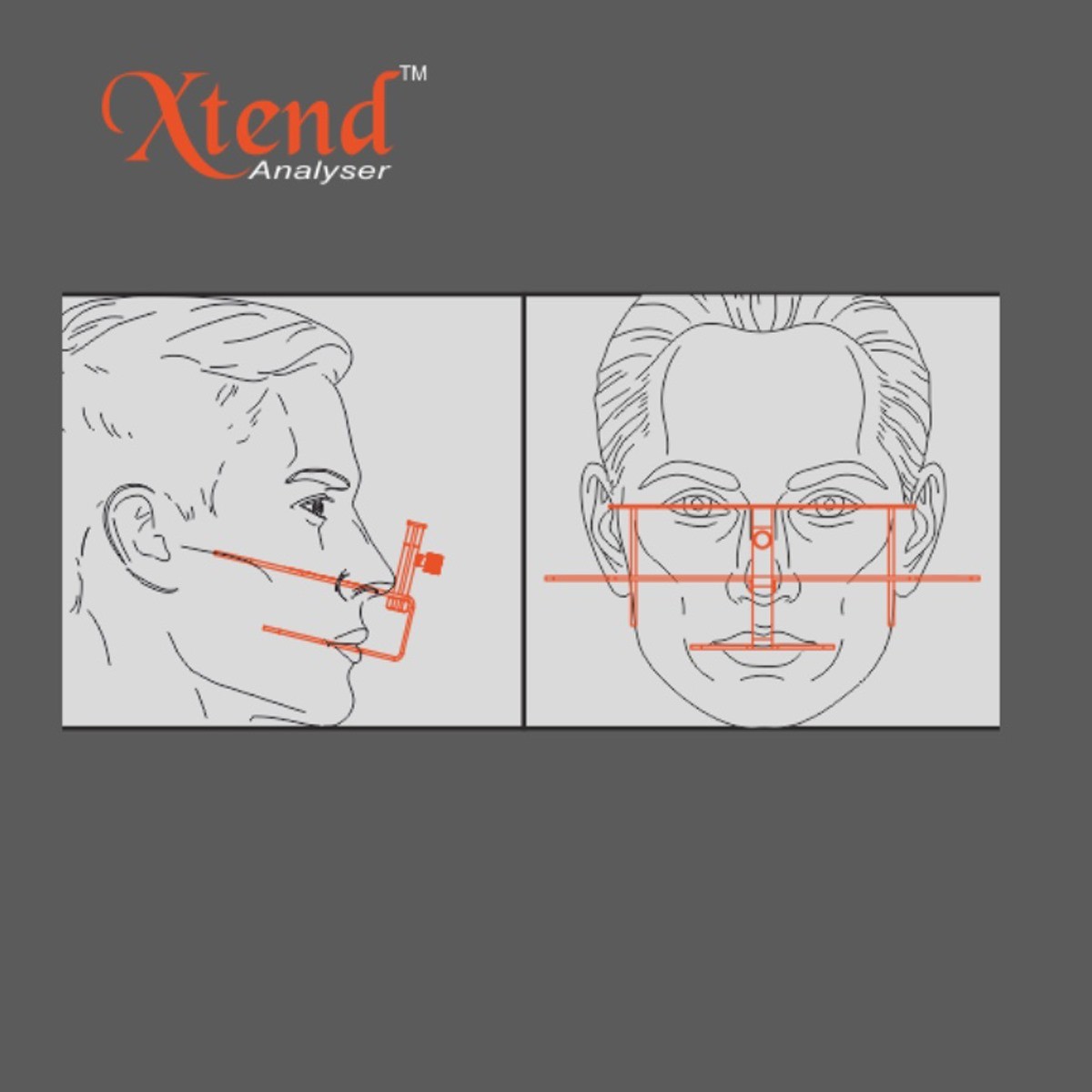

Xtend plane analyzer is used to analyse the anatomical plane (Alatragal line) of the patient in relation to the interpupillary line and thereby establish the occlusal plane for the prosthesis in order to achieve functional stability. It has a vertically adjustable (max- 10mm) interpupilary reference plate.
The planeanalyser is used widely in complete denture fabrication to check the occlusal plane during. A). Jaw Relation. B). Denture trial
Indications: Occlusal Plane Analyser, Eye Reference, Campers Plane, Complete Dentures, Removable Prosthetic, Plane Check, Occlusal Guide.

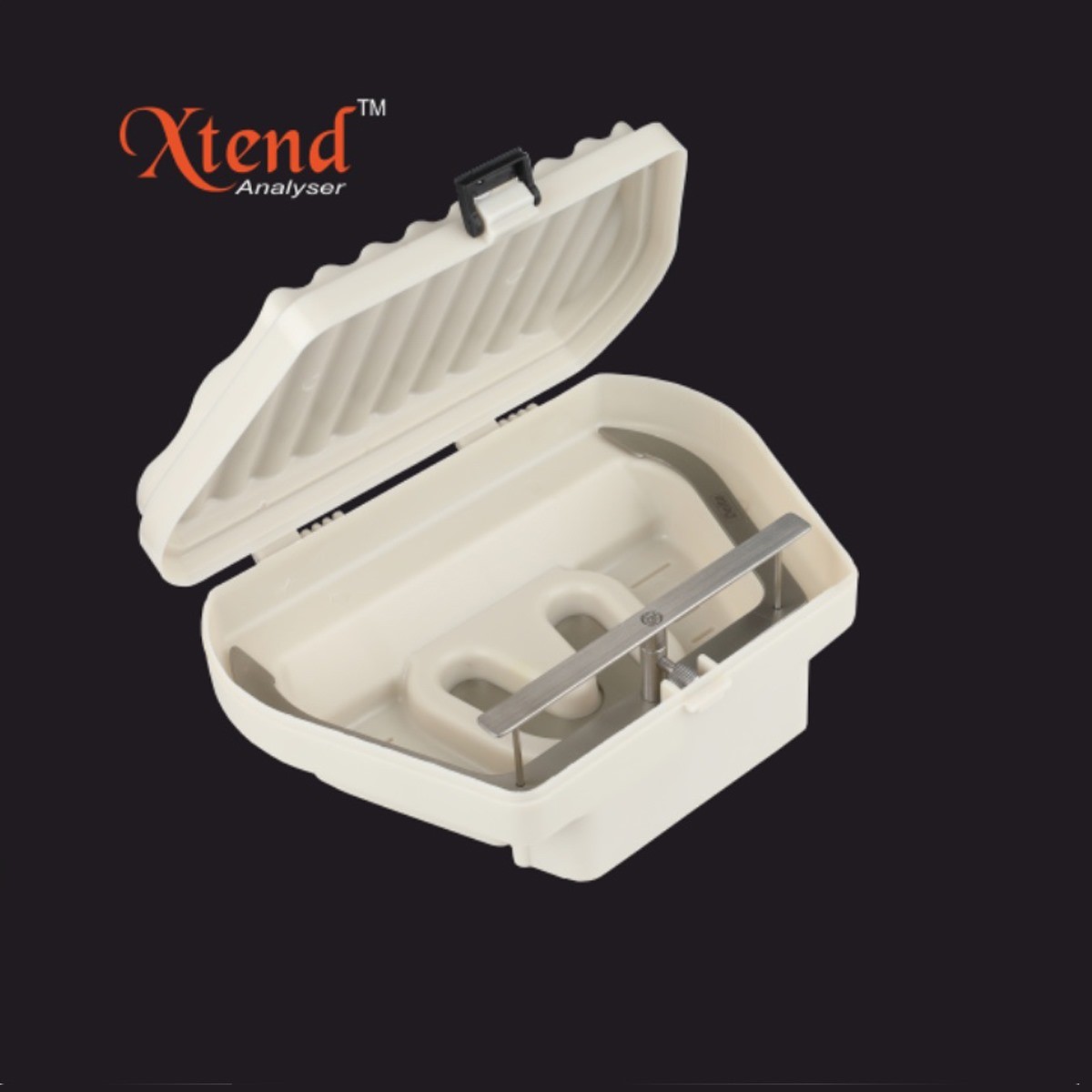

Plane analyzer with autoclave box
nstructions for use
The plane analyzer can be disinfected & cleaned in an ultrasonic cleaner or manually.
Autoclavable at 121°C (use the autoclavable container supplied along with the xtend analyzer).
Caution:
1.? ?Handle the xtend analyzer gently while using, cleaning and sterilizing
2.? ?Always store the xtend analyzer in the container provided along with it
